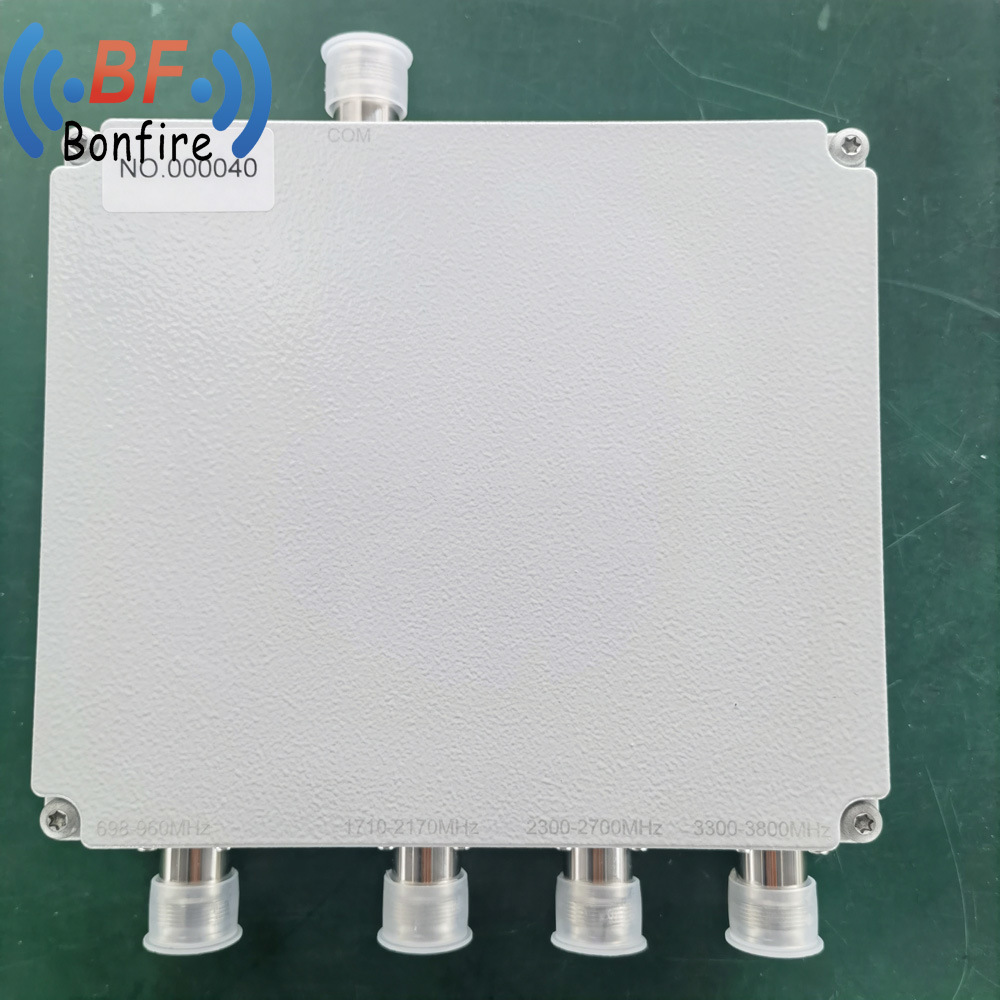

Low Insertion Loss Quad-Band Combiner 1710-2700MHz with High Directivity and Low Vswr

Model NO. : HL-1727-847701(843301)

Color : Grey/Red/Black/Customized

Capality : Ibs/Das Overall Project Delivery Capability

Interface : 4.3-10f DIN-F

Application : Indoor/Outdoor(IP65)

Transport Package : Carton/Palletizing

Specification : see below data table

Trademark : BF TECH

Origin : China

Supply Ability : 2000000PCS/Year

Package Size : 22.00cm * 19.00cm * 2.50cm

Package Gross Weight : 3.210kg

Place of Origin : China

MOQ : 1 Piece

Delivery Time : Peak Season Lead Time: one month, Off Season Lead Time: within 15 workdays

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram

Contact Now

Features:
★Wide frequency band, wide coverage
★PIM optimized design.
★Ideal for all kind of DAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.

Specifications:

Frequency Range(MHz)	1710-1880	1920-2170	2300-2400	2500-2700
Insertion Loss(dB)	< 0.4
Isolation(dB)	> 50
Return Loss(dB)	≥ 20
VSWR	≤ 1.22
*PIM3 (dBc@243dBm)**	≤ -160
Input Power(W)	200
Impedance(Ω)	50
DC/AISG	By-pass(max. 3000mA)
Lightning protection	10KA; 10/350μs pulse
RF Connector	4.3-10F(DIN-F)
Color	Gray
Relative humidity	5%~95%
Operating Temperature(°C)	-40 ~ +85
Applications	Indoor/Outdoor(IP67)

Low Insertion Loss Quad-Band Combiner 1710-2700MHz with High Directivity and Low Vswr

All our products can satisfy :

1: Customized Color (Black, Red, Grey, Golded,etc.)
2: Used in IBS/DAS/Public Safety/ Small Cell /Public Network / Private Network
3: Trial order accepted to prove our superior quality
4: OEM/ODM available .
5: Product Lead: delivery within 4 weeks for mass production
6: Unbeatable price to support you win the bid

All our products category :

RF Antenna , RF combiner, Power Splitter , Directional Coupler, Hybrid Coupler, RF Loads, RF Attenuator , Cable Assembly , RF Jumper Cable, RF Coaxial Cable , Cable clamp , etc.

We owe one-stop supply chain capability , you can get the lowest price for your DAS/IBS project .

Customers we served :

HUAWEI, ZTE, ERICSSON and their branch abroad, CHINA MOBILE, CHINA UNICOM, CHINA TELECOM and ROSENBERGER, RSF, etc.

  Cooperate Once, Replace Never !

Low Insertion Loss Quad-Band Combiner 1710-2700MHz with High Directivity and Low Vswr

Low Insertion Loss Quad-Band Combiner 1710-2700MHz with High Directivity and Low Vswr

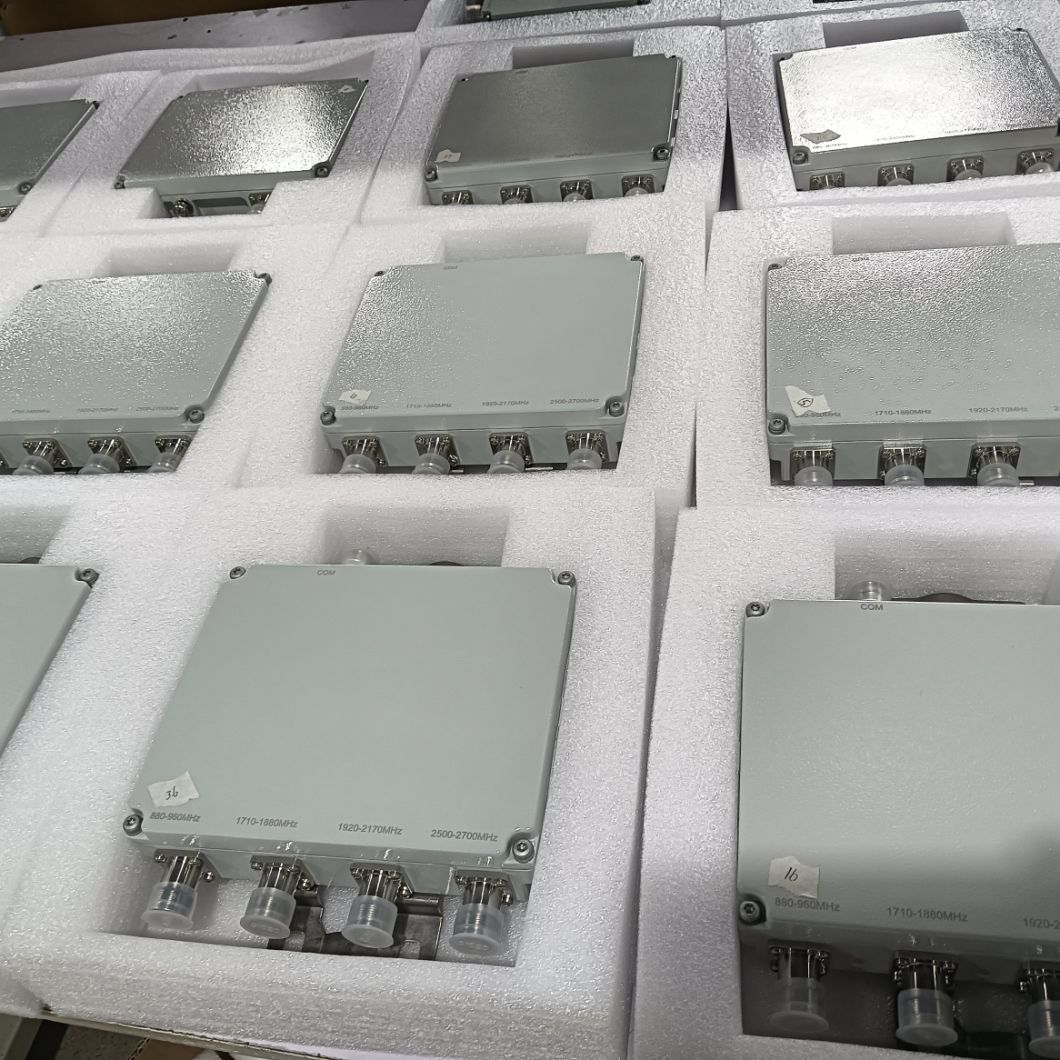

Low Insertion Loss Quad-Band Combiner 1710-2700MHz with High Directivity and Low Vswr Images
